2007 - Washington DC, USA

Smithsonian Institution Courtyard

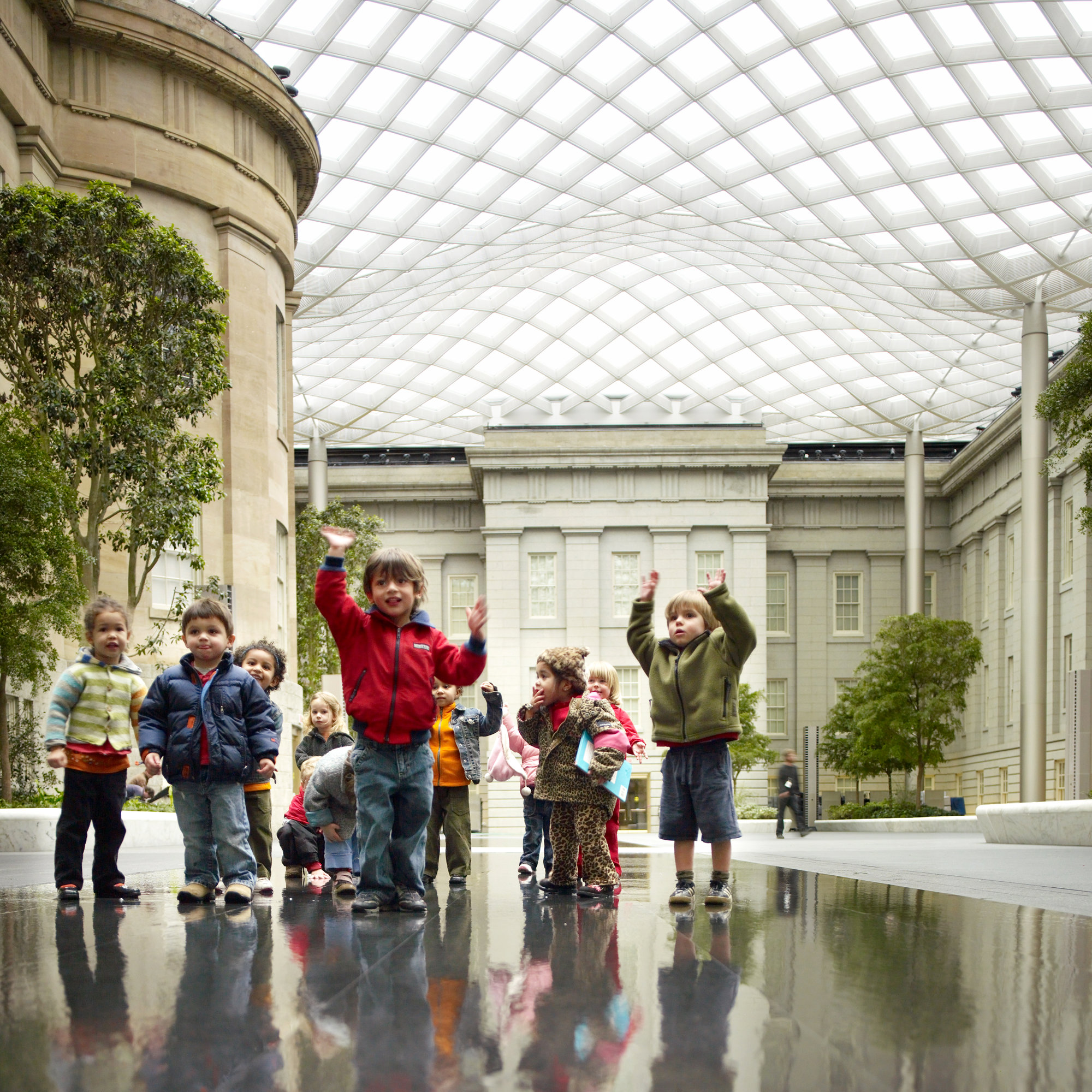

When you stare directly up at the grid of beams, it seems almost symmetrical; but as you move around the courtyard it begins to change form, undulating like a sheet in a gentle breeze. On sunny days the grid will cast a fishnet pattern of shadows over the old facades; at night its forms become more muscular and mysterious.
The New York Times

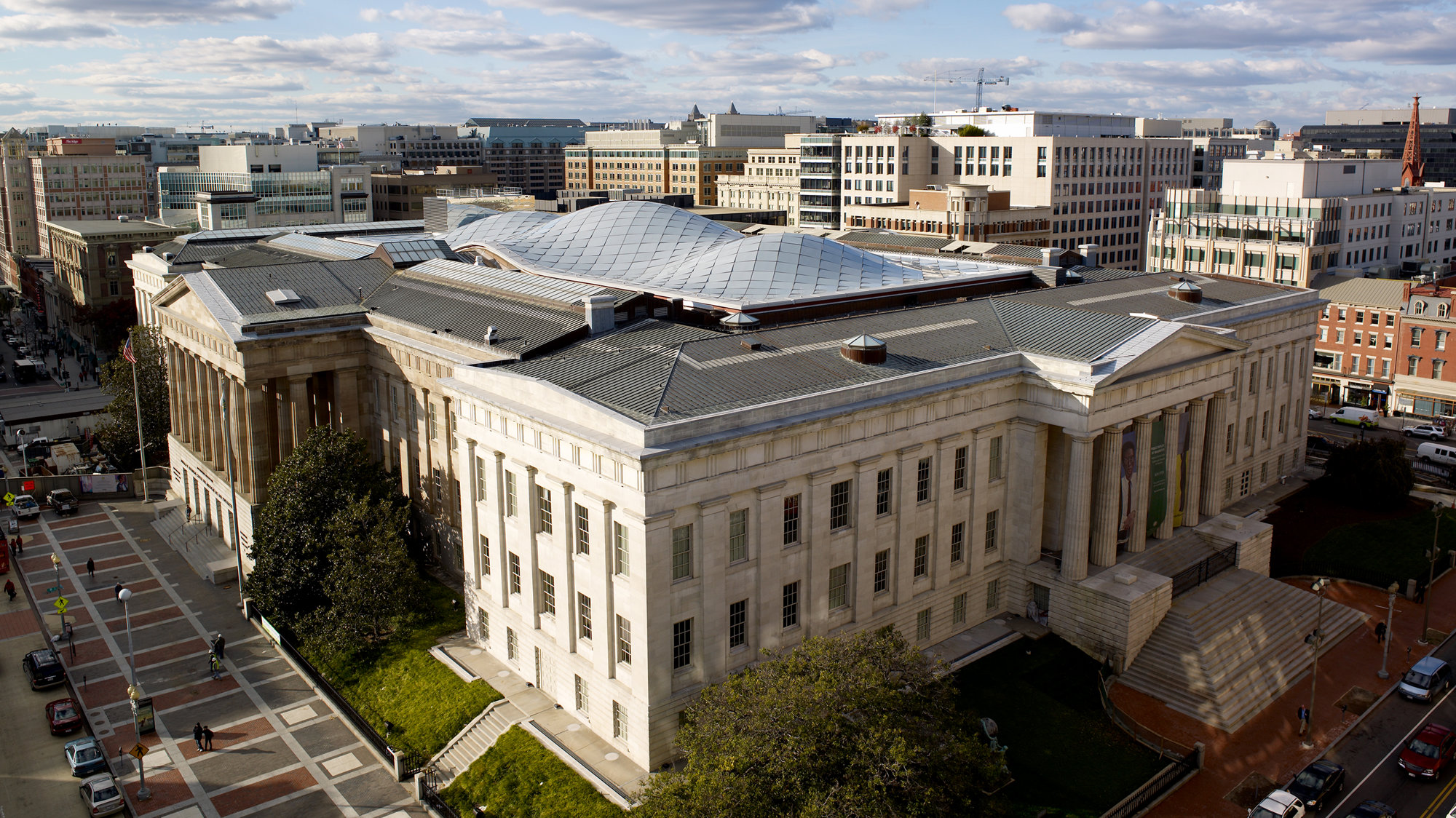

The Smithsonian Institution occupies the former United States Patent Building, once described by the poet Walt Whitman as ‘the noblest of Washington buildings’. Built between 1836 and 1867, the Patent Building is the finest example of Greek Revival architecture in the United States and a celebrated part of the capital’s urban fabric. Now designated as a National Historic Landmark, the building was rescued from impending demolition in 1958 by President Eisenhower, who transferred it to the Smithsonian Institution for use as the National Portrait Gallery and the Smithsonian American Art Museum. The enclosure of the building’s grand central courtyard was prompted by a desire to transform the public’s experience of the Smithsonian’s galleries and provide the Institution with one of the largest event spaces in Washington.

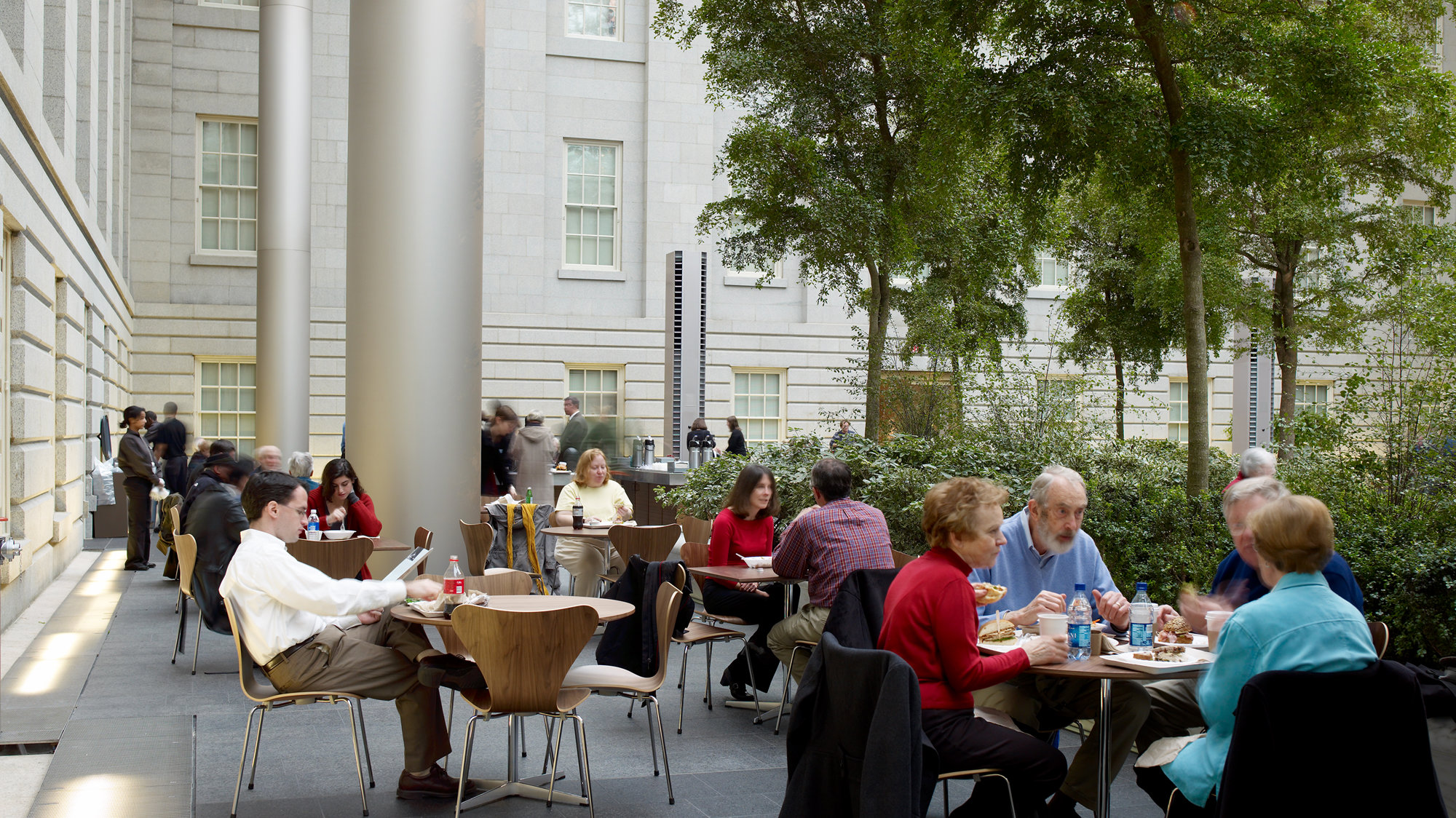

The enclosed courtyard forms the centrepiece of this retrofit project, which also included the redesign of the galleries with contemporary interactive displays, the addition of a conservation laboratory, an auditorium and greatly increased exhibition space. Visitors can enter the surrounding galleries from the courtyard, and out of museum hours the space regularly hosts a variety of social events, including concerts and public performances. Designed to do ‘the most with the least’, the fluid-form, fully glazed roof canopy develops structural and environmental themes first explored in the design of the roof of the Great Court at the British Museum, bathing the courtyard with natural light.

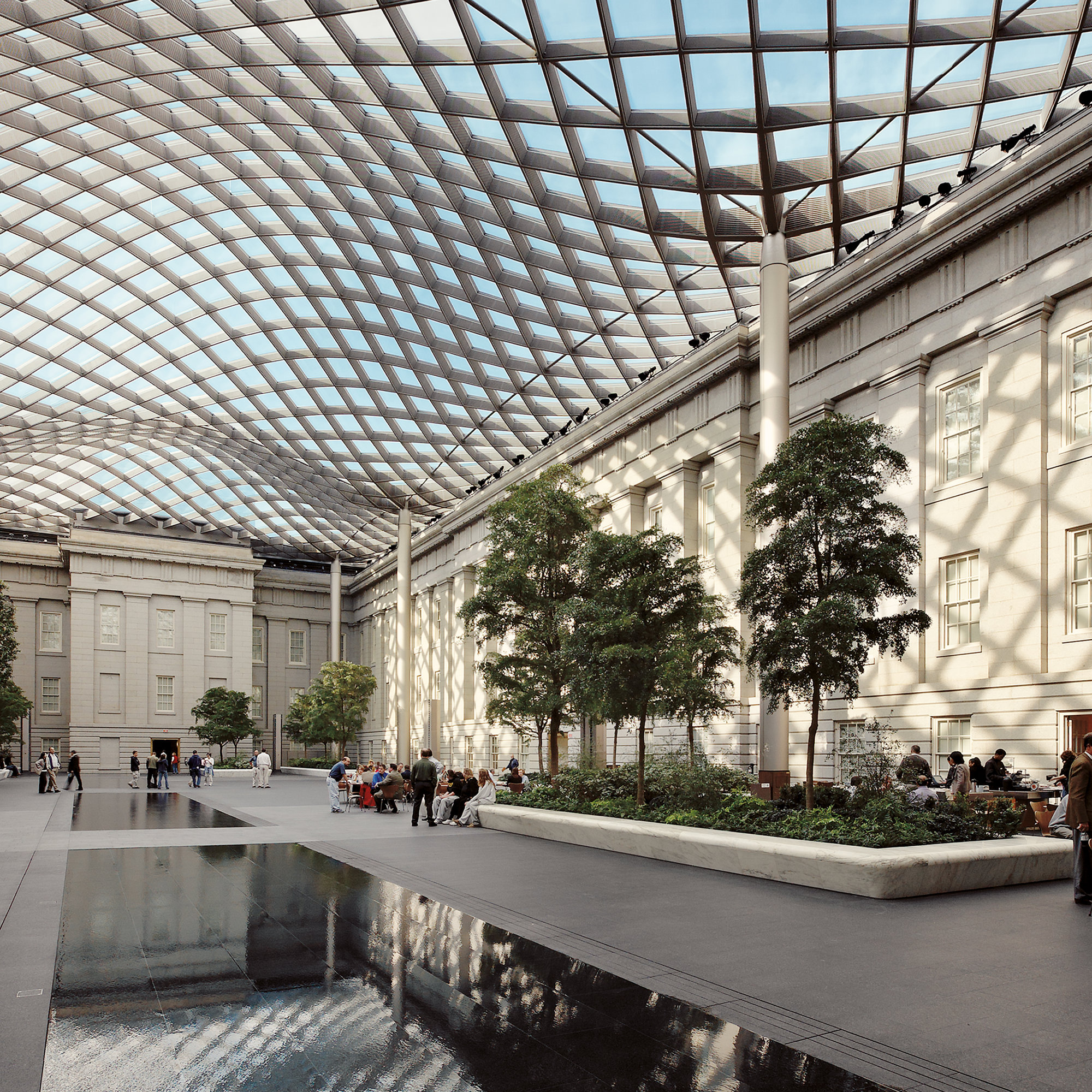

Structurally, the roof is composed of three interconnected vaults that flow into one another through softly curved valleys. The double-glazed panels are set within a diagrid of fins, clad in acoustic material, which together form a rigid shell that needs to be supported by only eight columns. Visually, the roof is raised above the walls of the existing building, clearly articulating the new from the old. Seen illuminated at night, this canopy appears to float above the Patent Building, symbolising the cultural importance of the Smithsonian Institution and giving new life to a popular Washington landmark.

Smithsonian Institution Courtyard

Washington DC USA

View map
  • Appointment 2004
  • Completion 2007
  • Area 2,601m²
  • Capacity 1,261
  • Client Smithsonian Institution
  • Collaborating Architect Smith Group Inc
  • Structural Engineer Buro Happold
  • Quantity Surveyor Aecom
  • Environmental Engineer URS Corporation
  • Landscape Architect Gustafson Guthrie Nichol Ltd
  • Lighting Engineer George Sexton Associates
  • Website https://si.edu
  • 2008 - World Architecture Festival, Best ‘New & Old’ project
  • 2008 - Chicago Athenaeum International Architecture Award
  • Washington Building Congress Craftsmanship Award
  • 2010 - Building Stone Institute Tucker Design Award
  • This courtyard is a gift to the entire nation, as well as the nation's capital. It will enable the Smithsonian to expand its services to all visitors by creating a uniquely beautiful location for exciting events, special programs and quiet contemplation.
    Smithsonian Institution
