Queen Alia International Airport continues the practice’s explorations of the airport terminal as a building type and sets out a vision for an environmentally sensitive, regionally apt, airport architecture. Designed to serve as the main gateway to Amman – one of the oldest continually inhabited cities in the world – its design resonates with a sense of place and local culture. Strategically the building secures Amman’s position as the main hub for the Levant Region. Logistically, it allows the airport to grow by 6 per cent per annum for the next twenty-five years, increasing capacity from 3 million to 12.8 million passengers per annum by 2030.

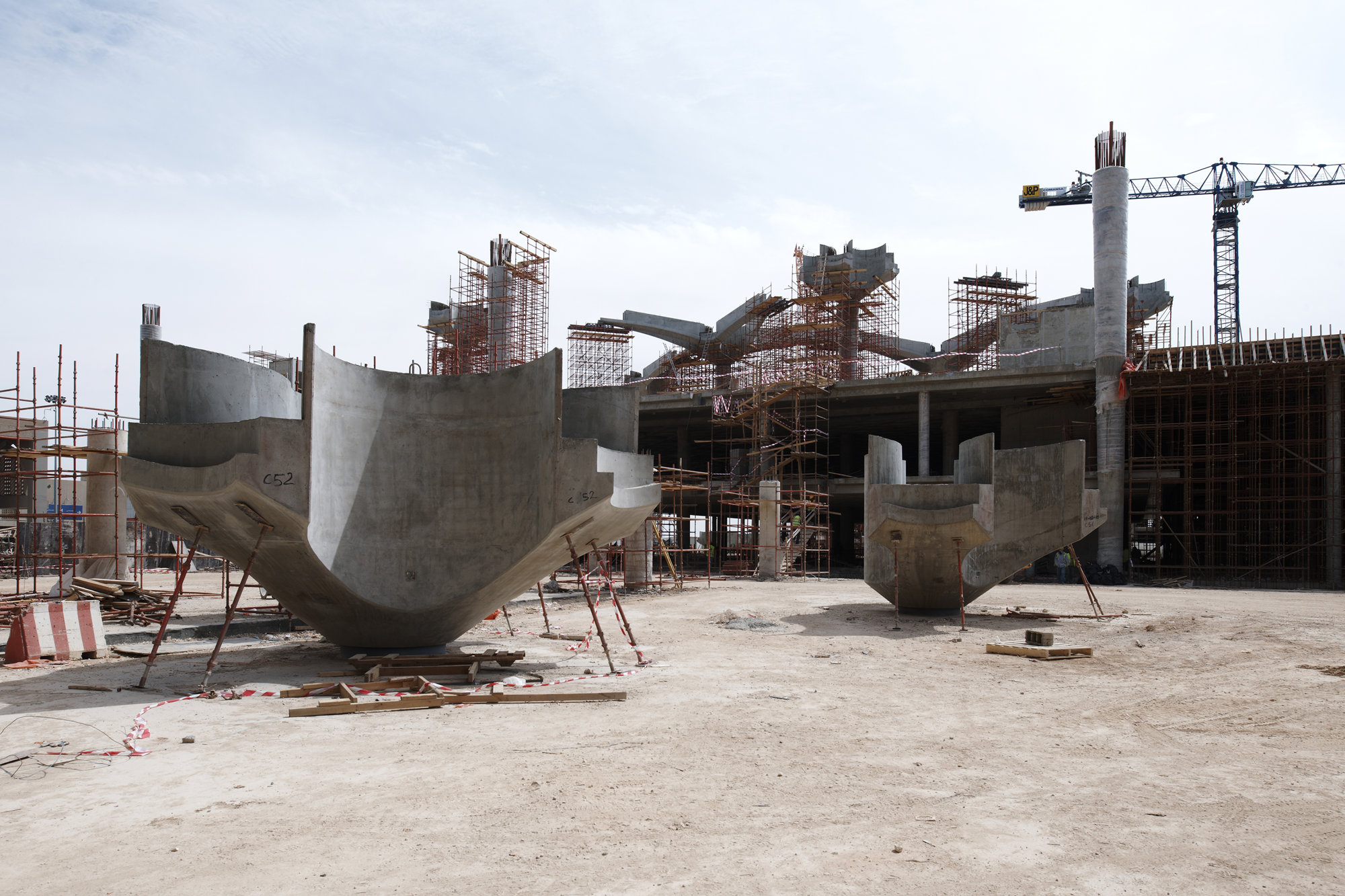

In response to local building expertise and Amman’s climate, where summer temperatures vary markedly between daytime and night time the building is constructed entirely from concrete, the high thermal mass of the material providing passive environmental control.

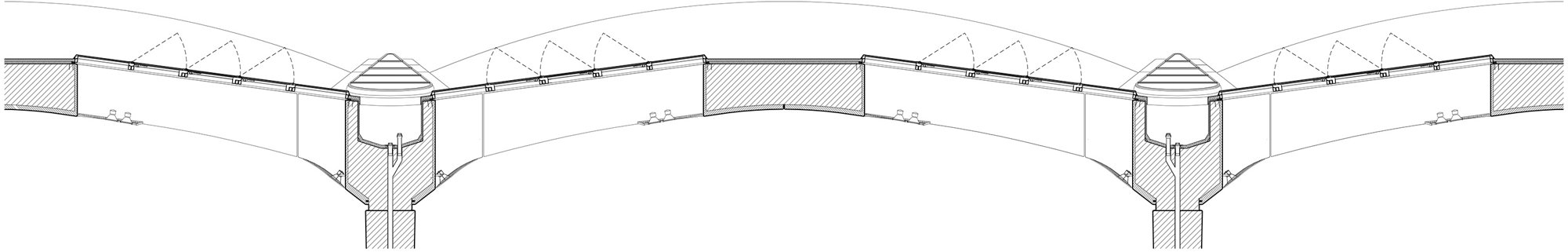

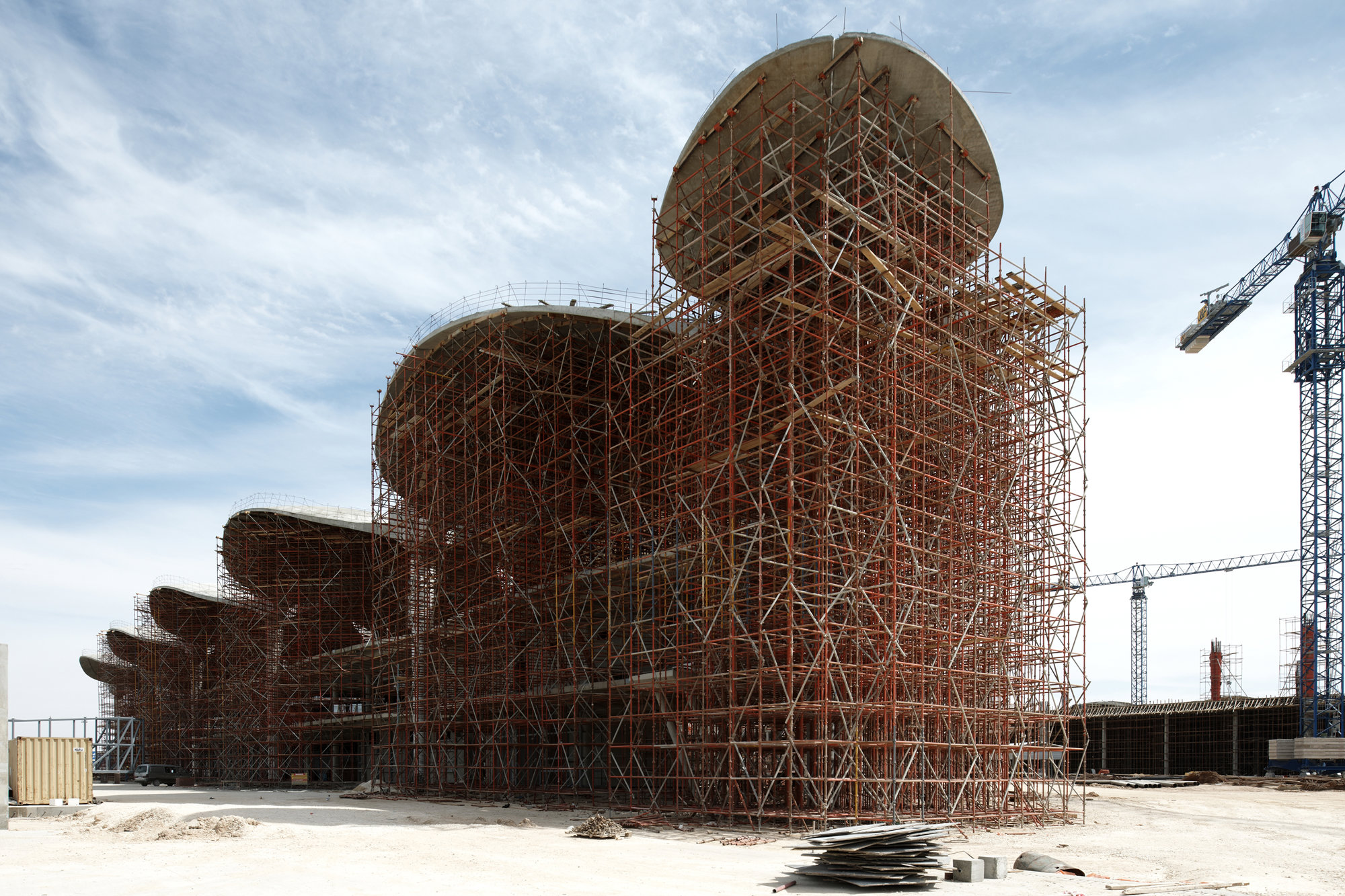

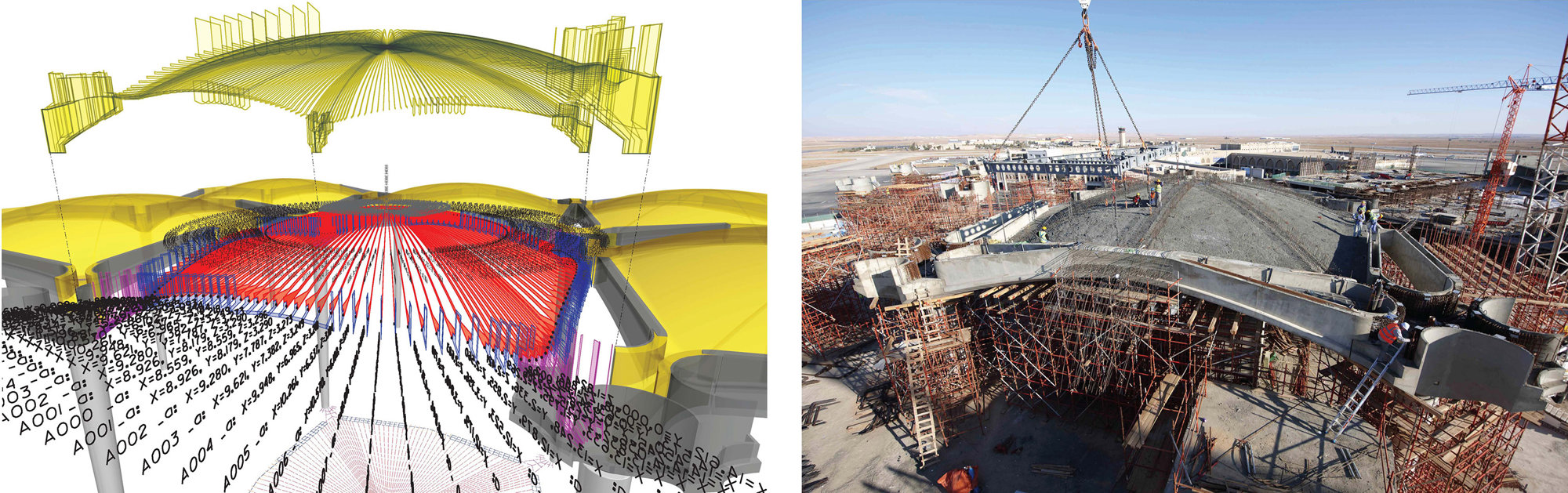

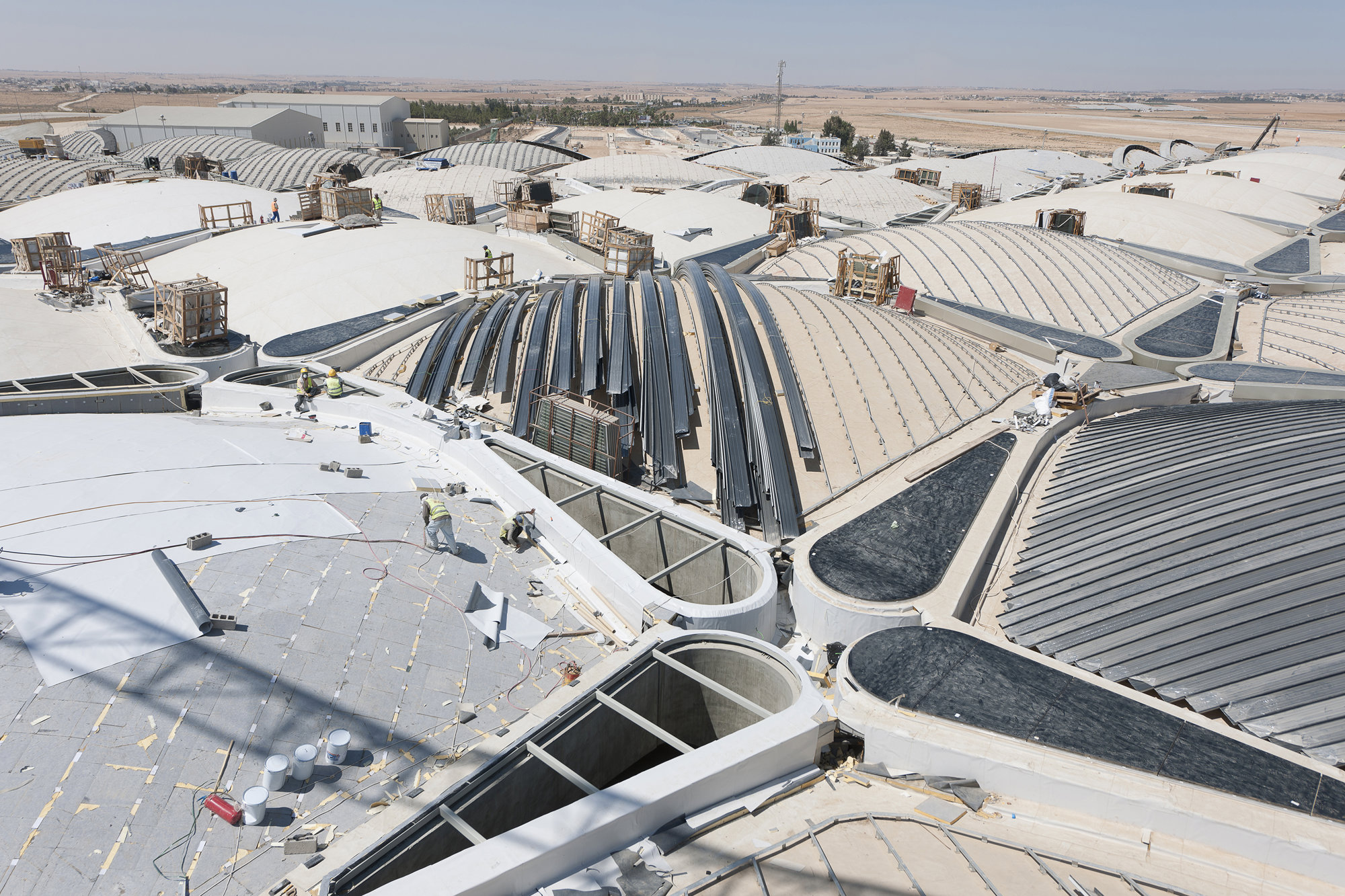

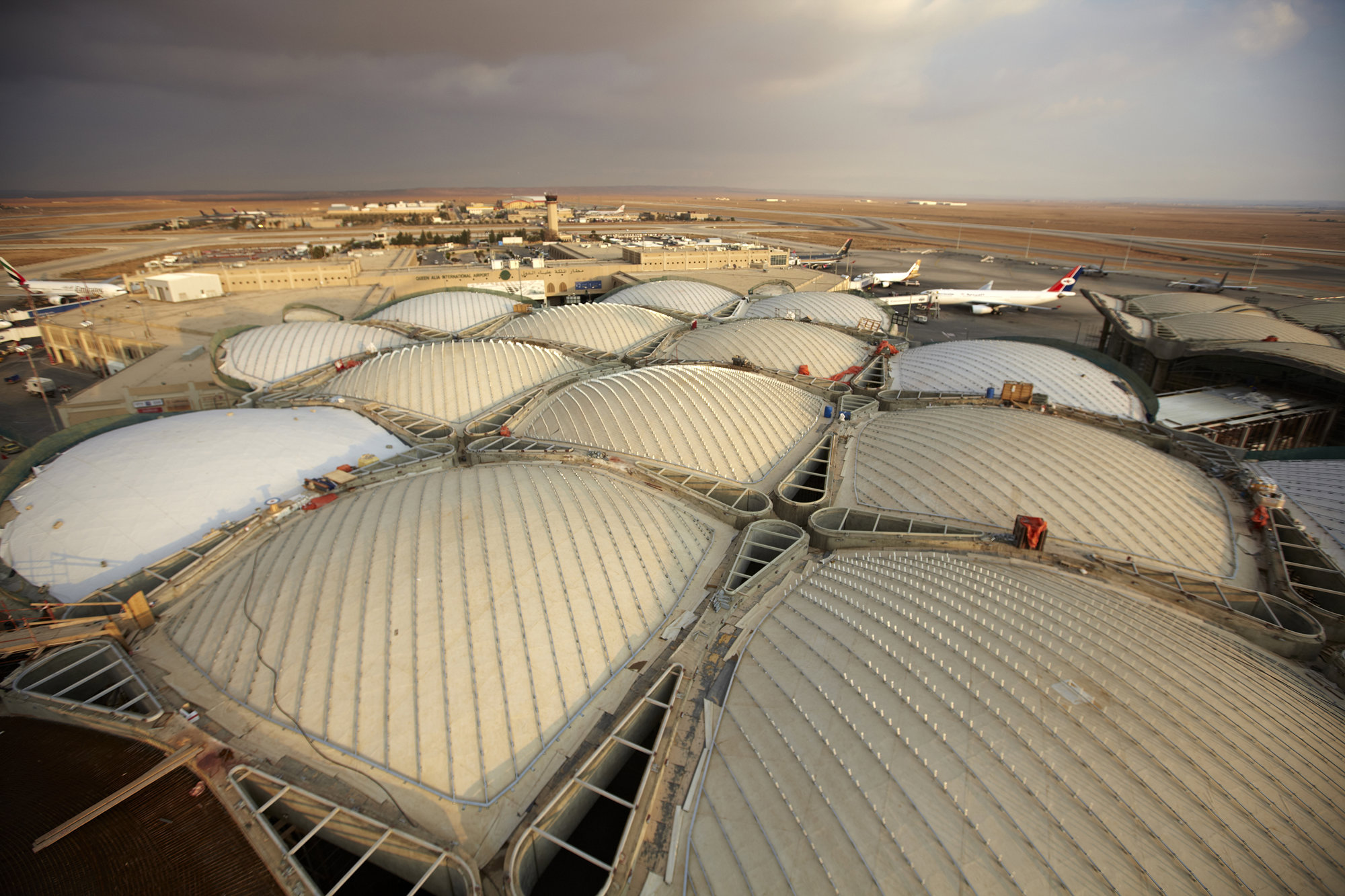

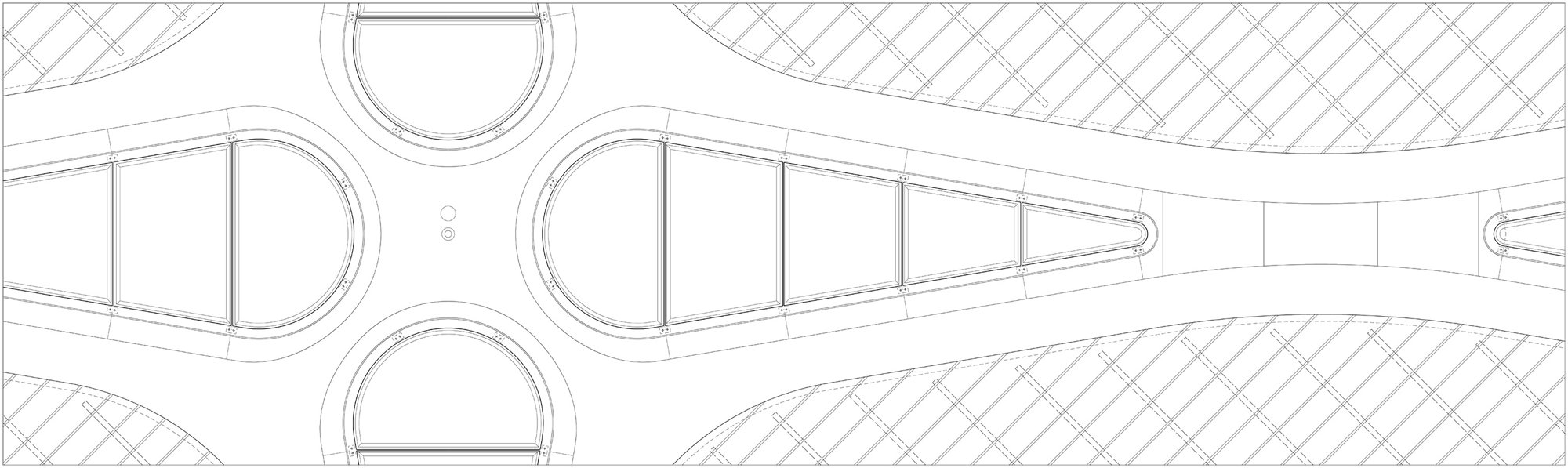

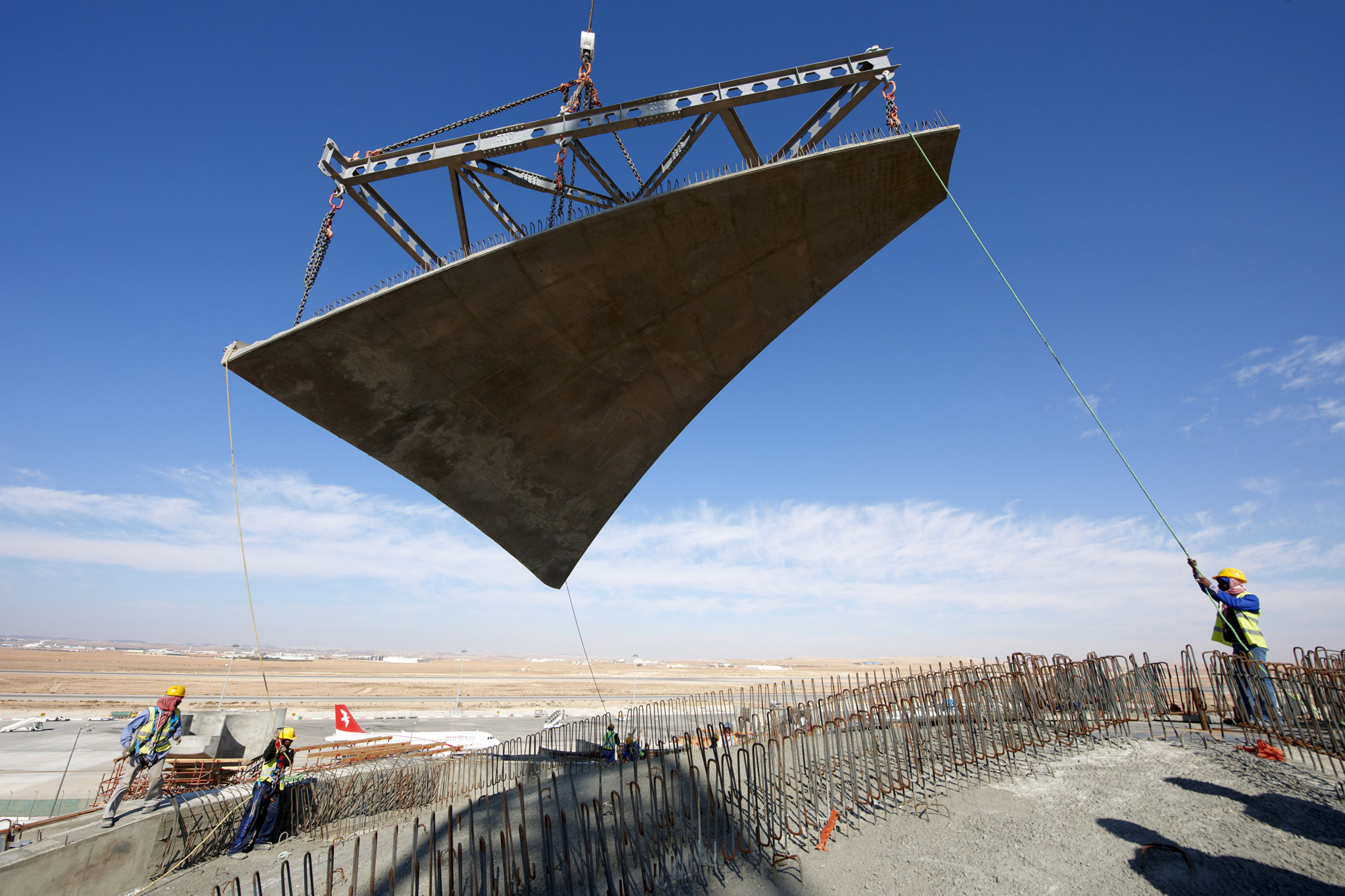

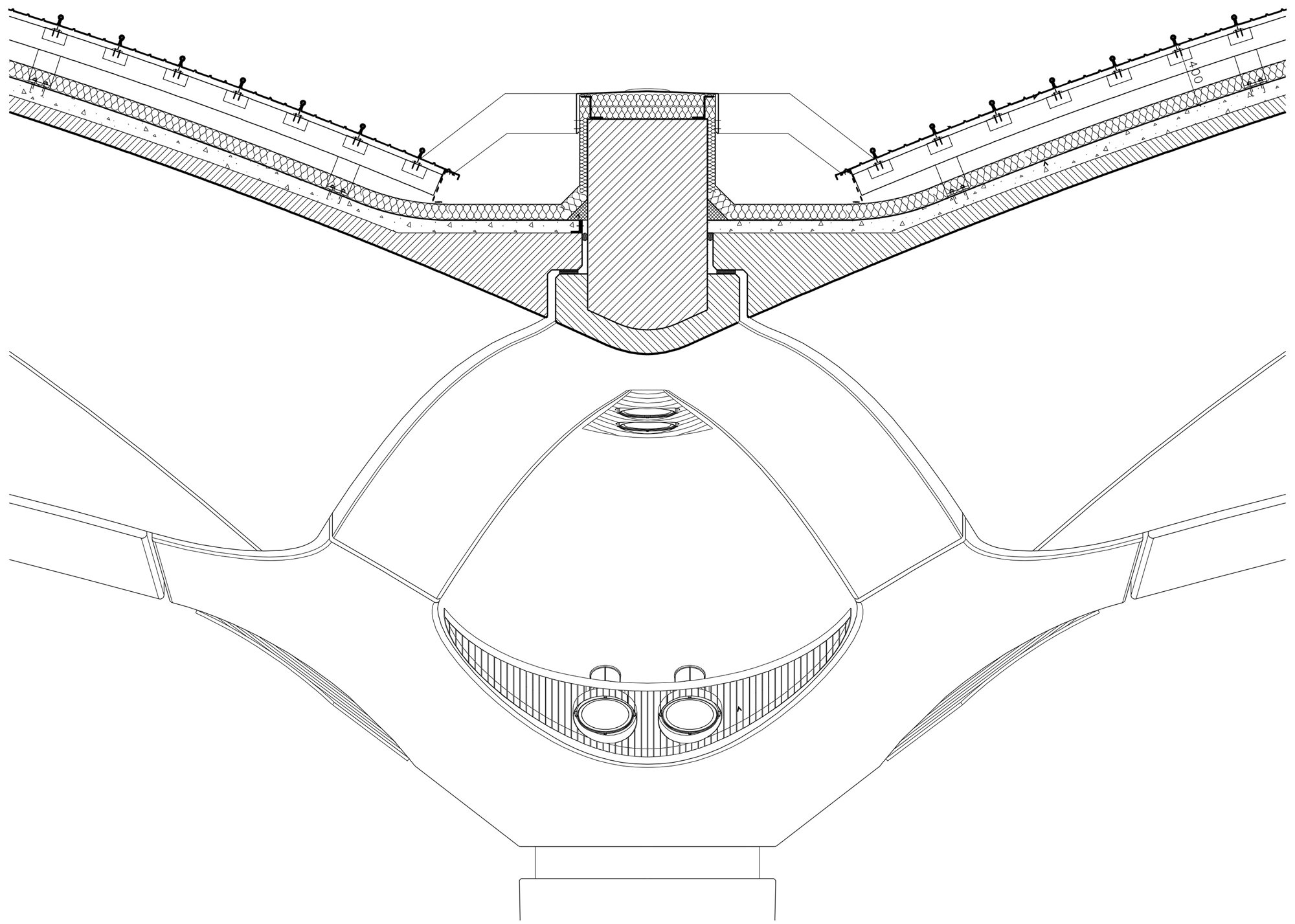

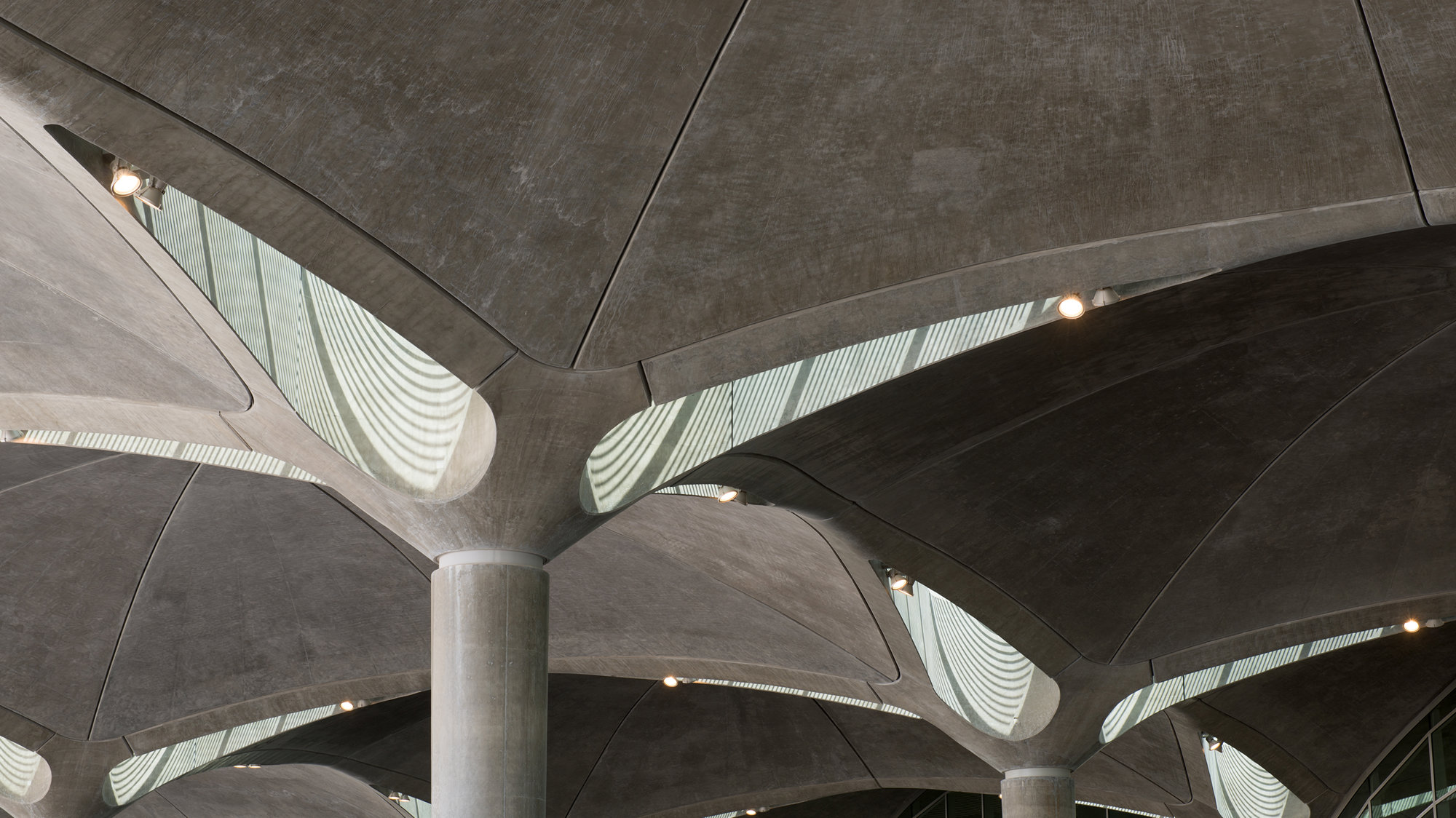

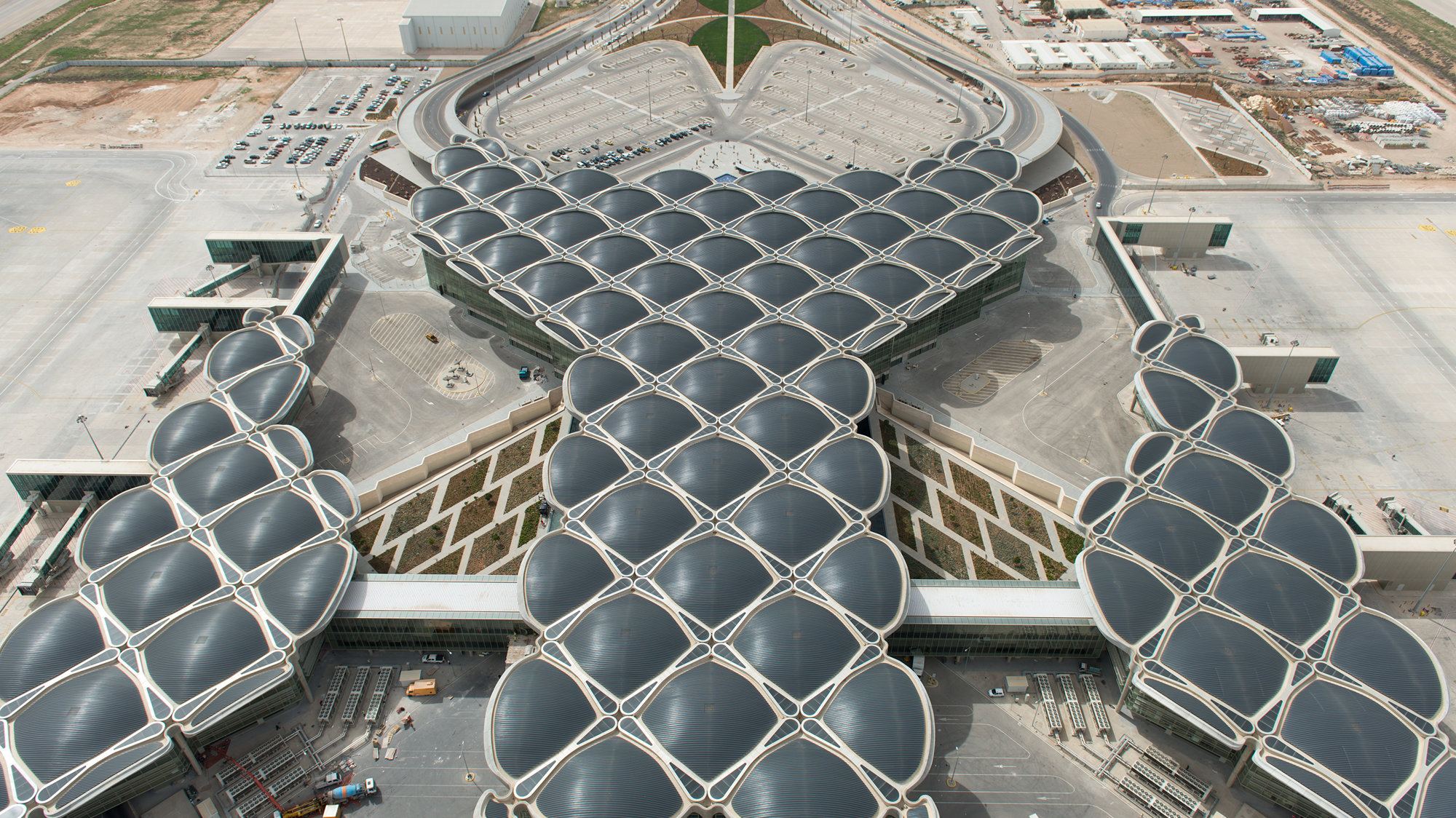

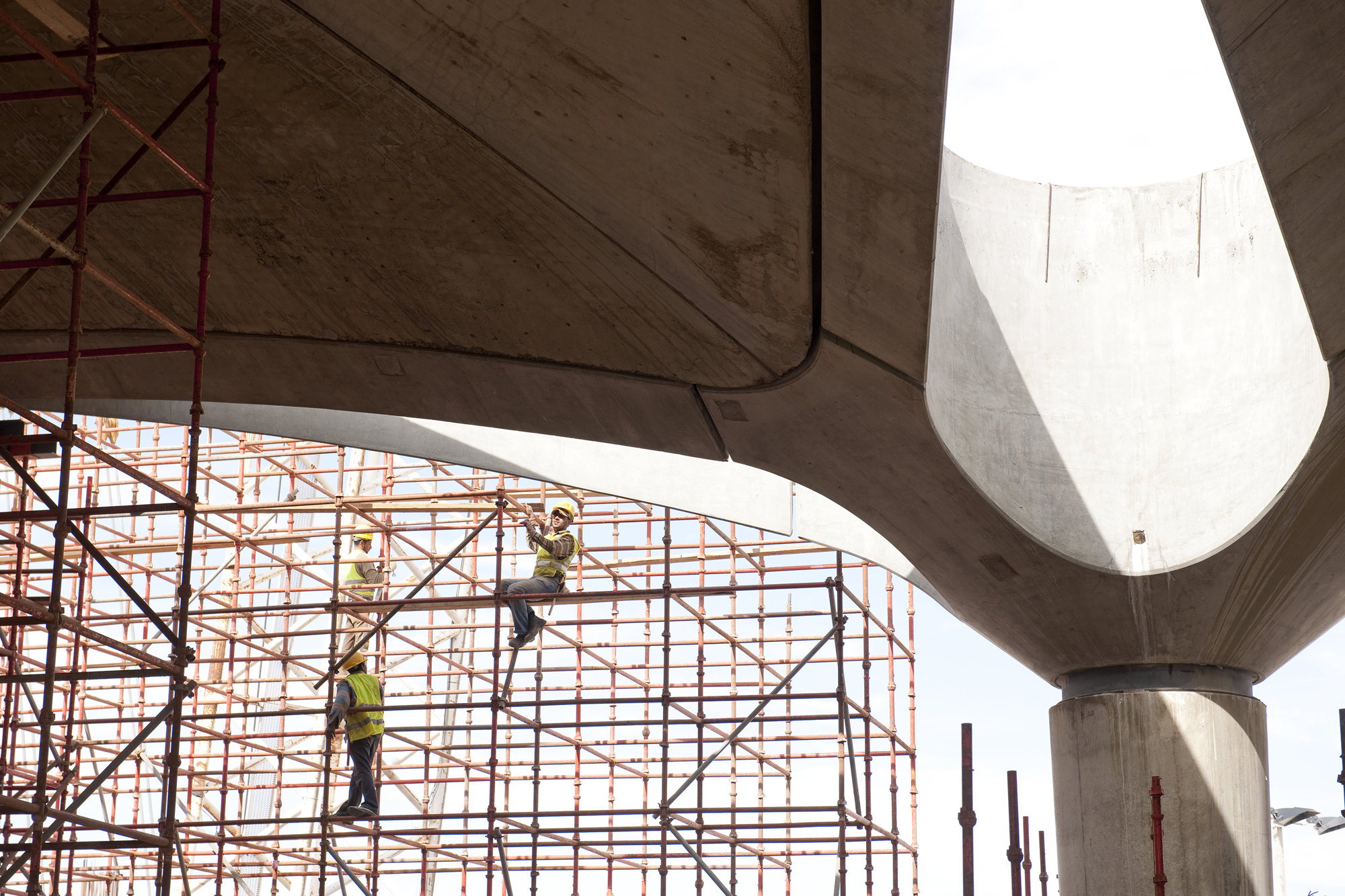

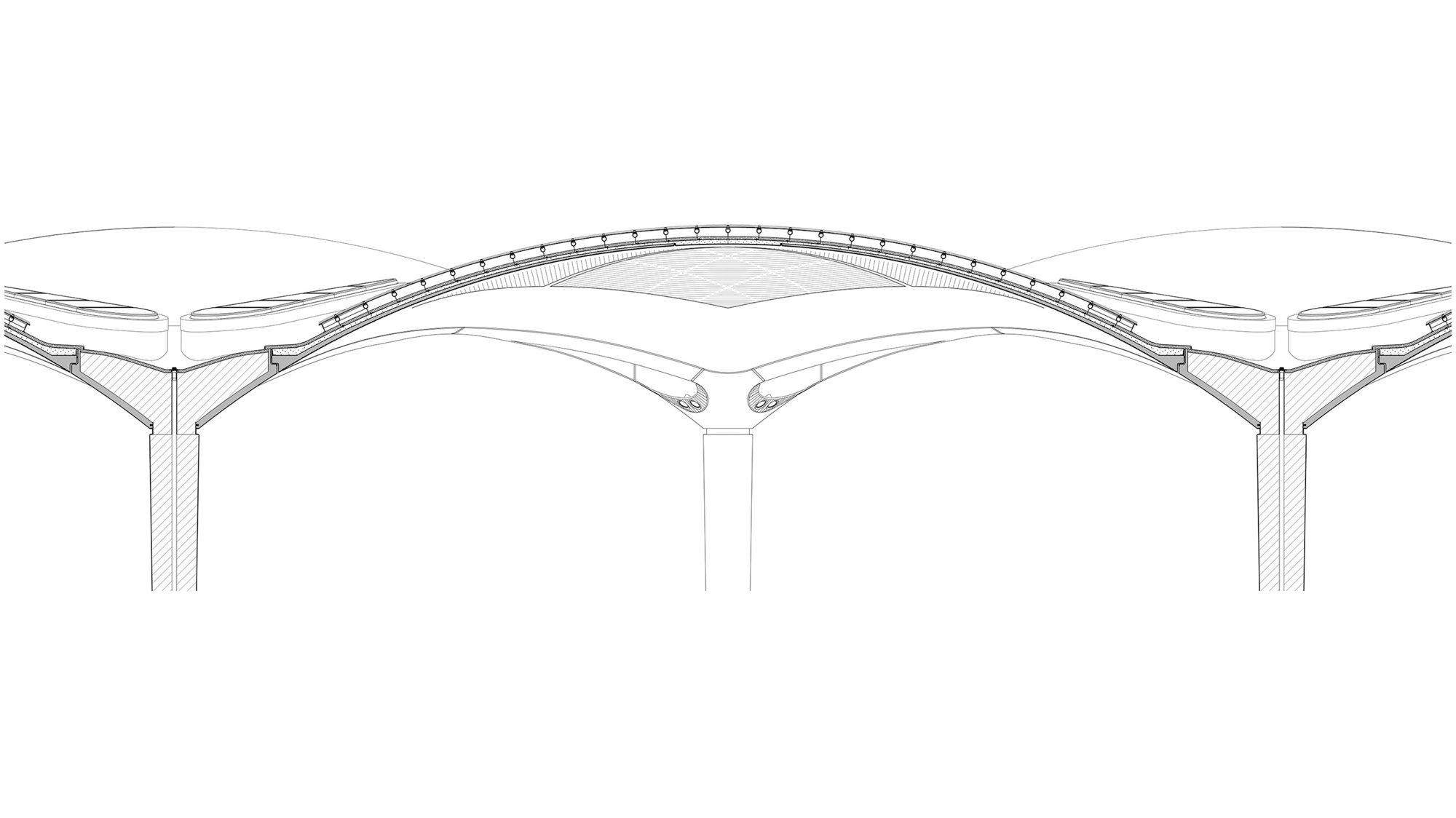

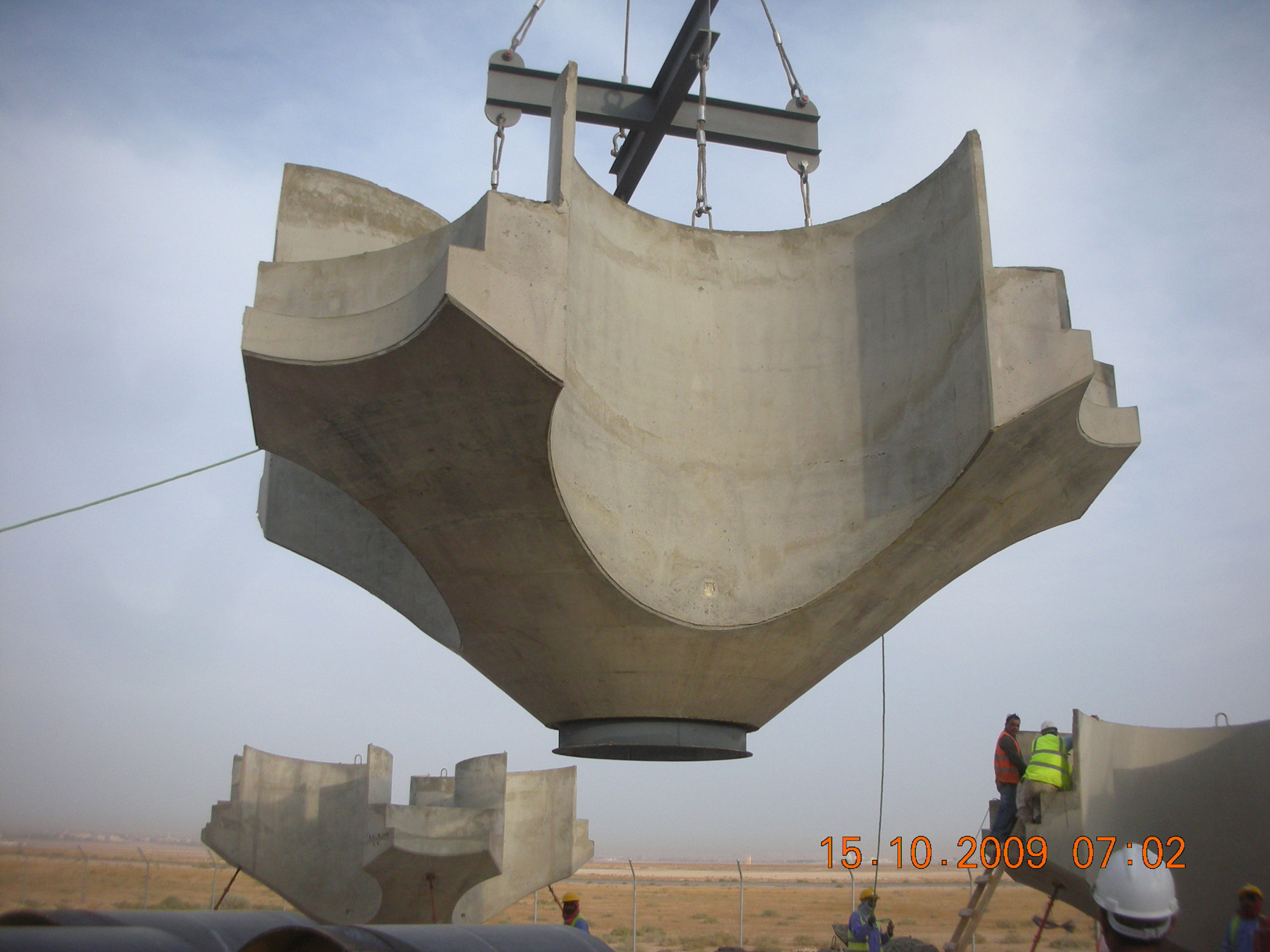

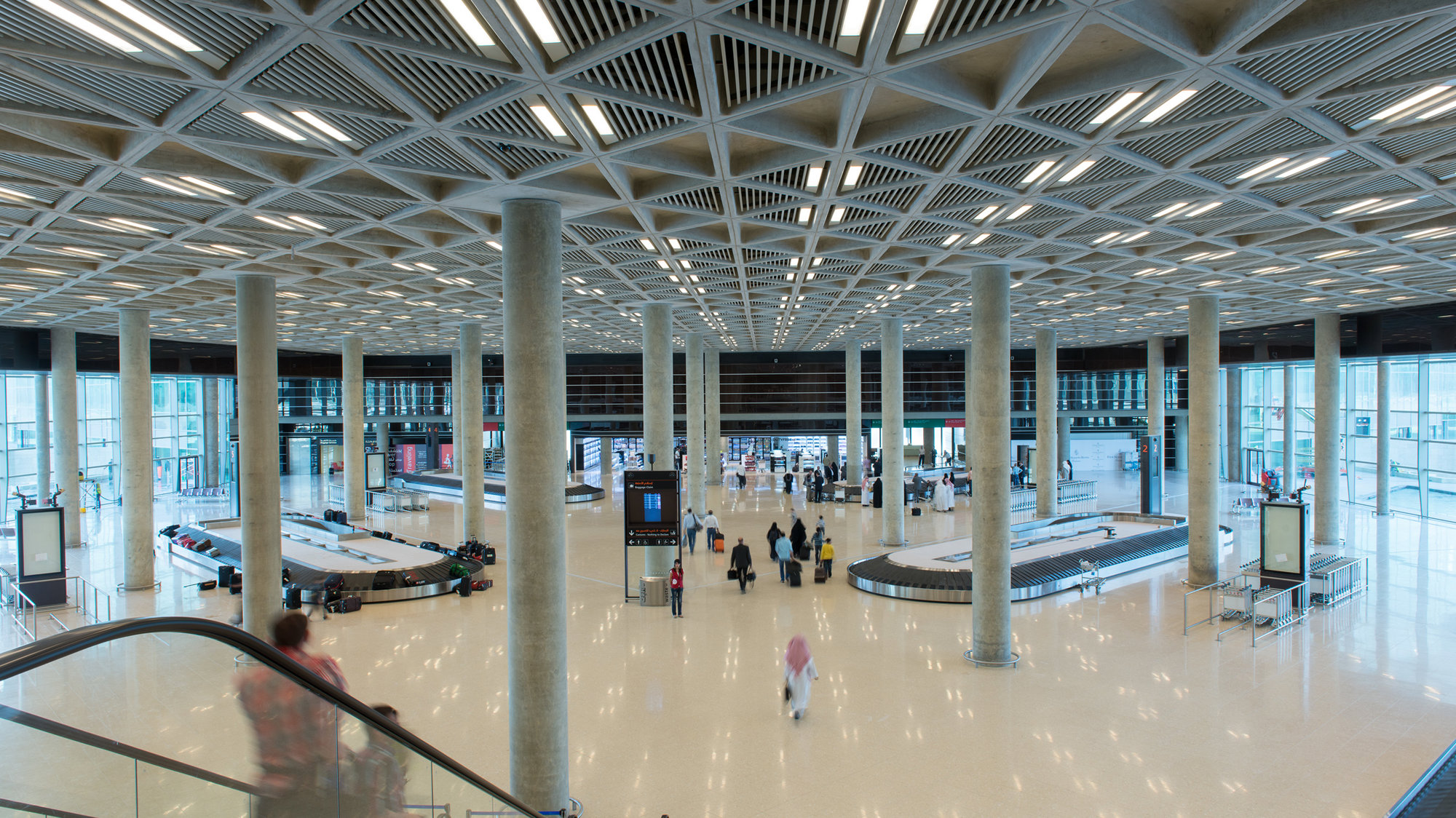

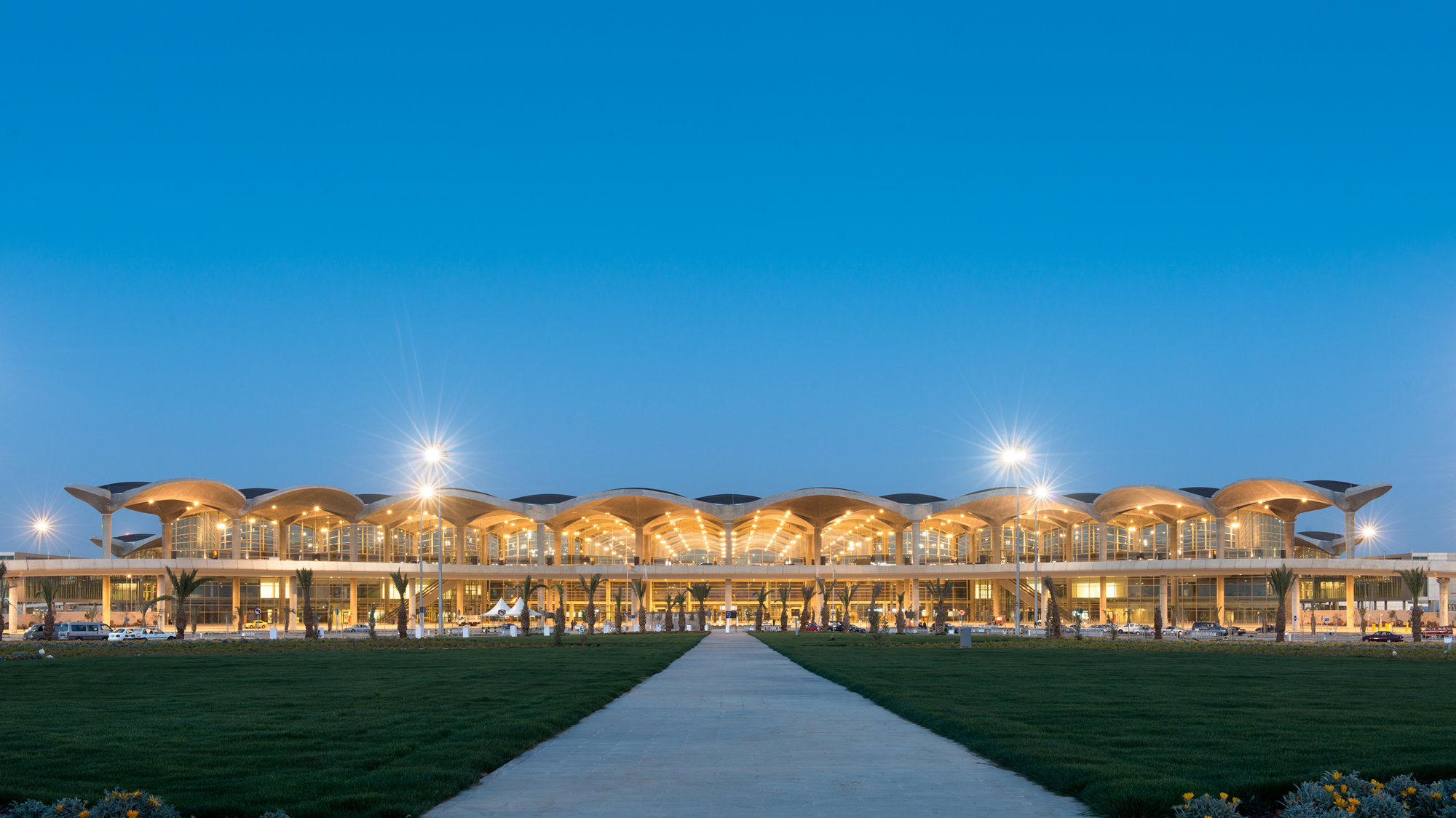

The tessellated roof canopy comprises a series of shallow concrete domes, which extend to shade the facades. To enable seamless future expansion, each dome is a modular unit. The domes branch out from the supporting columns like the leaves of a desert palm and daylight floods the concourse through split beams at the column junctions. Echoing the veins of a leaf, a geometric pattern based on traditional Islamic forms is applied to each exposed soffit.

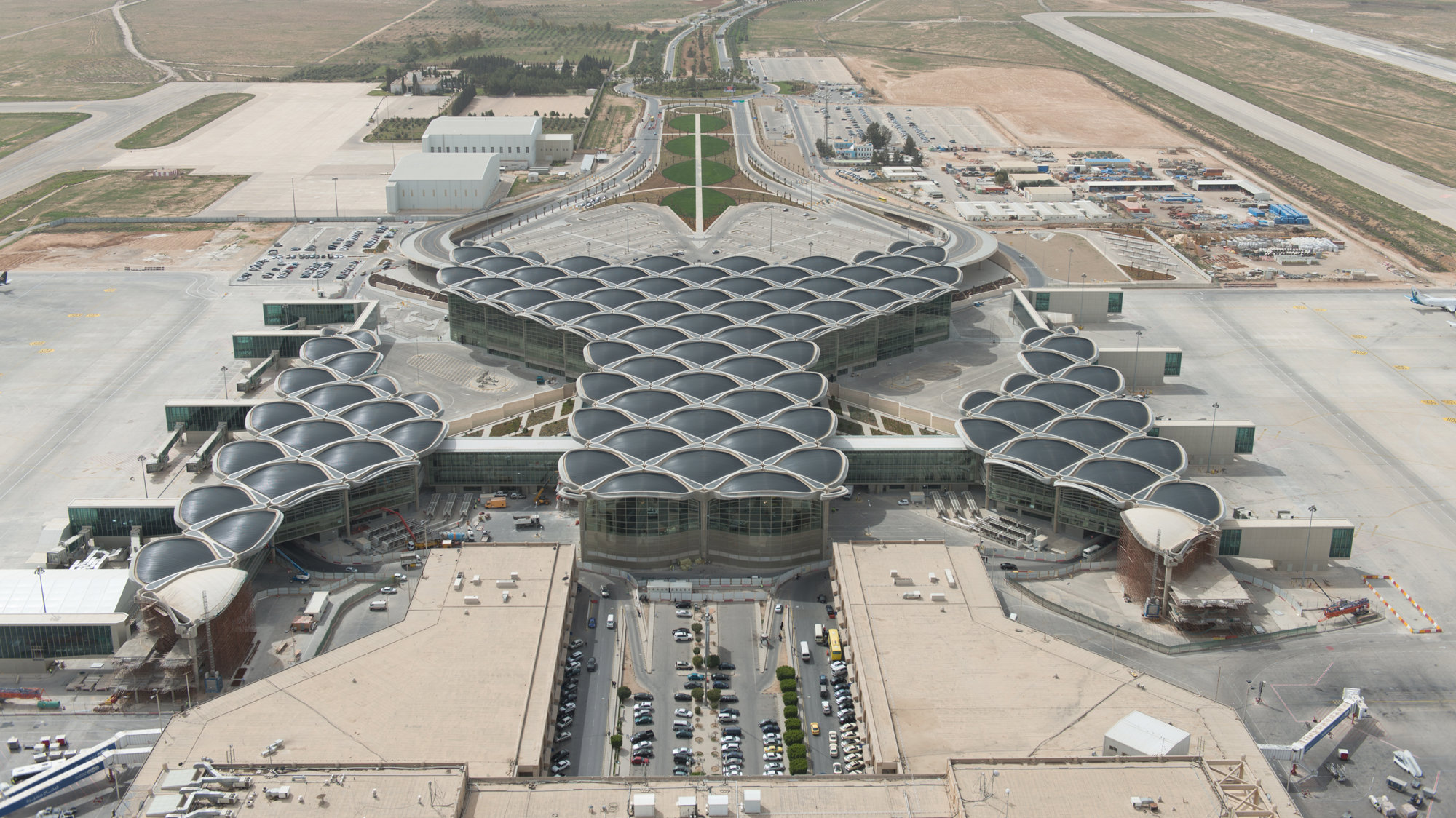

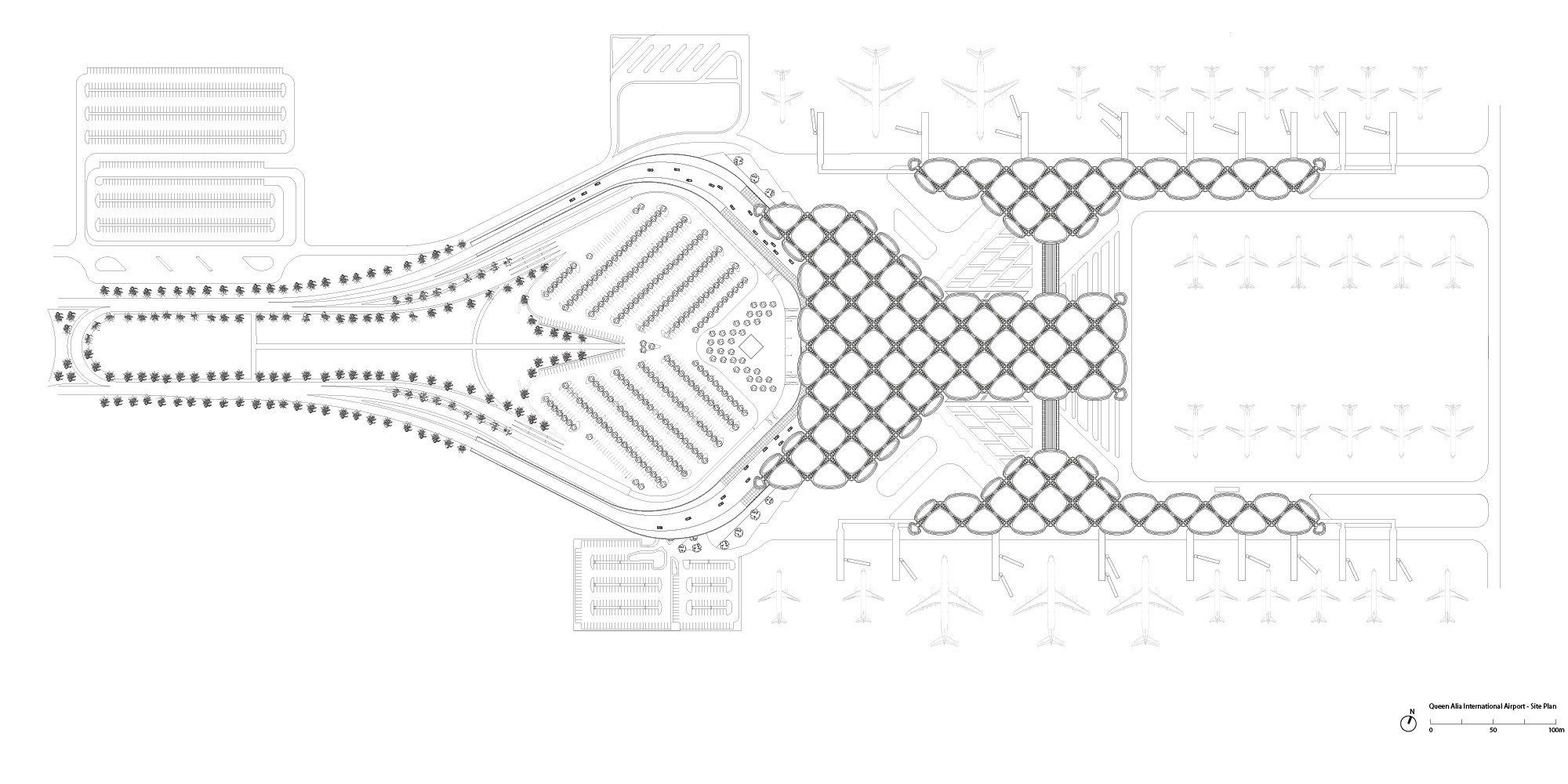

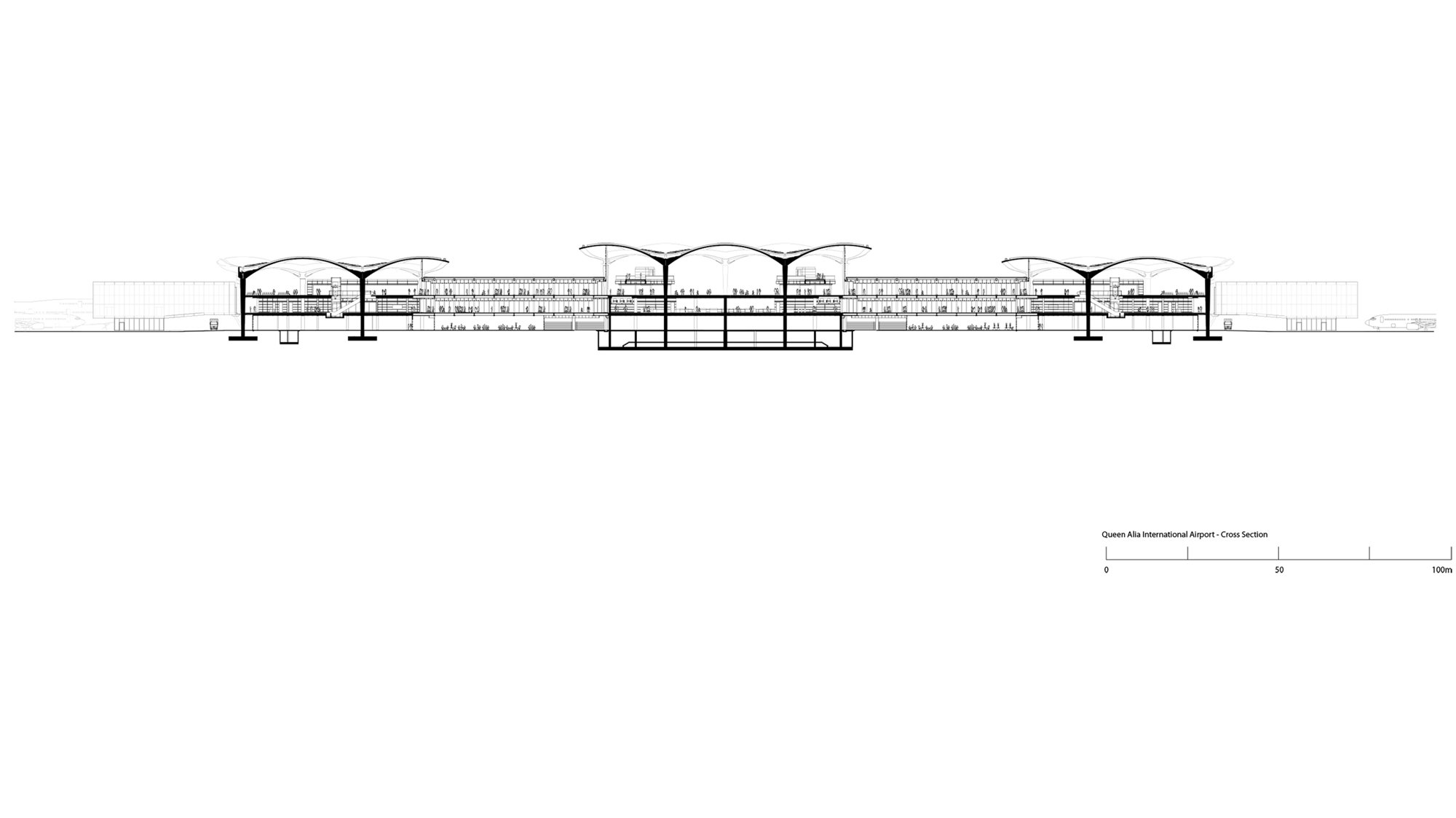

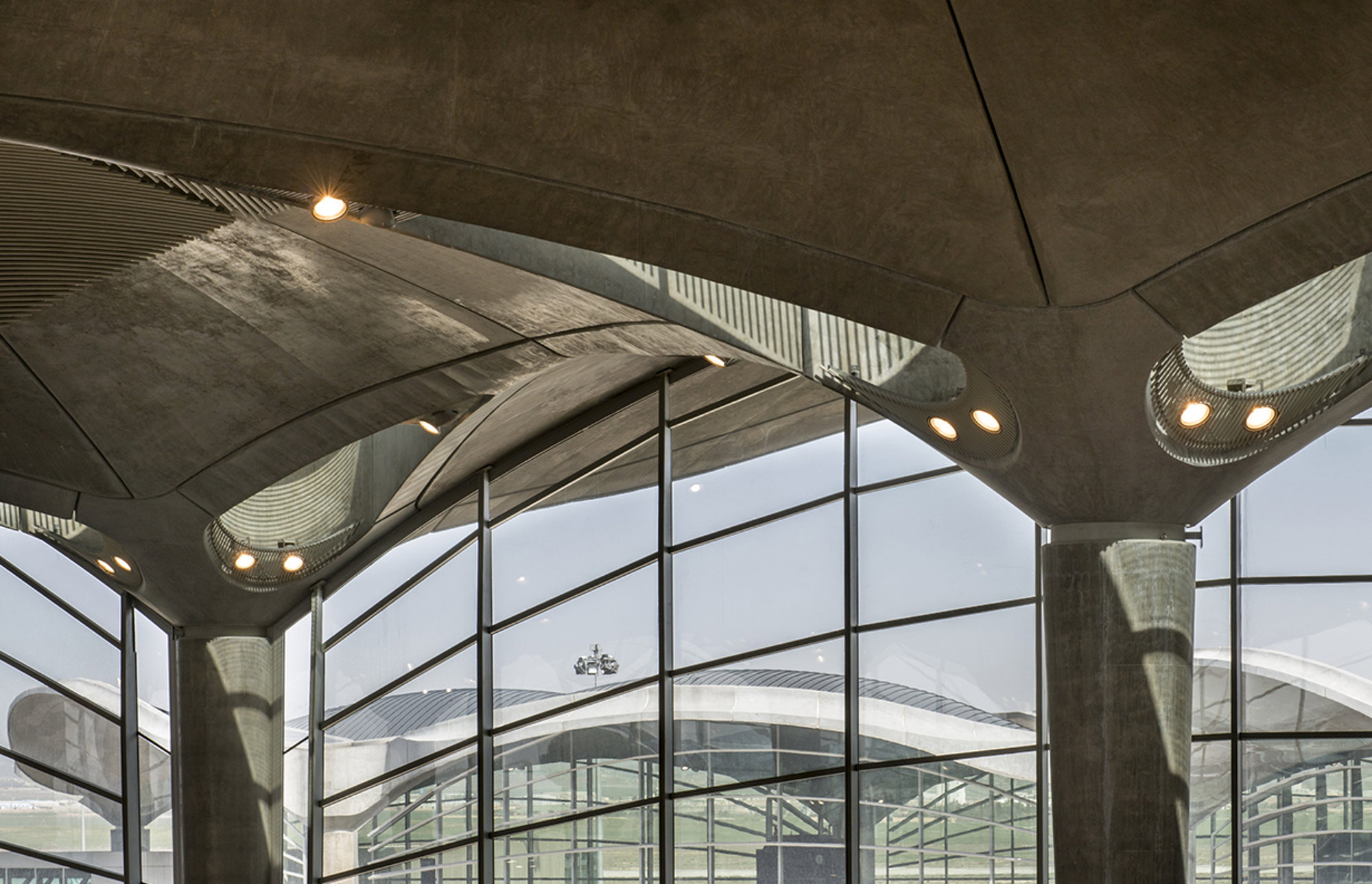

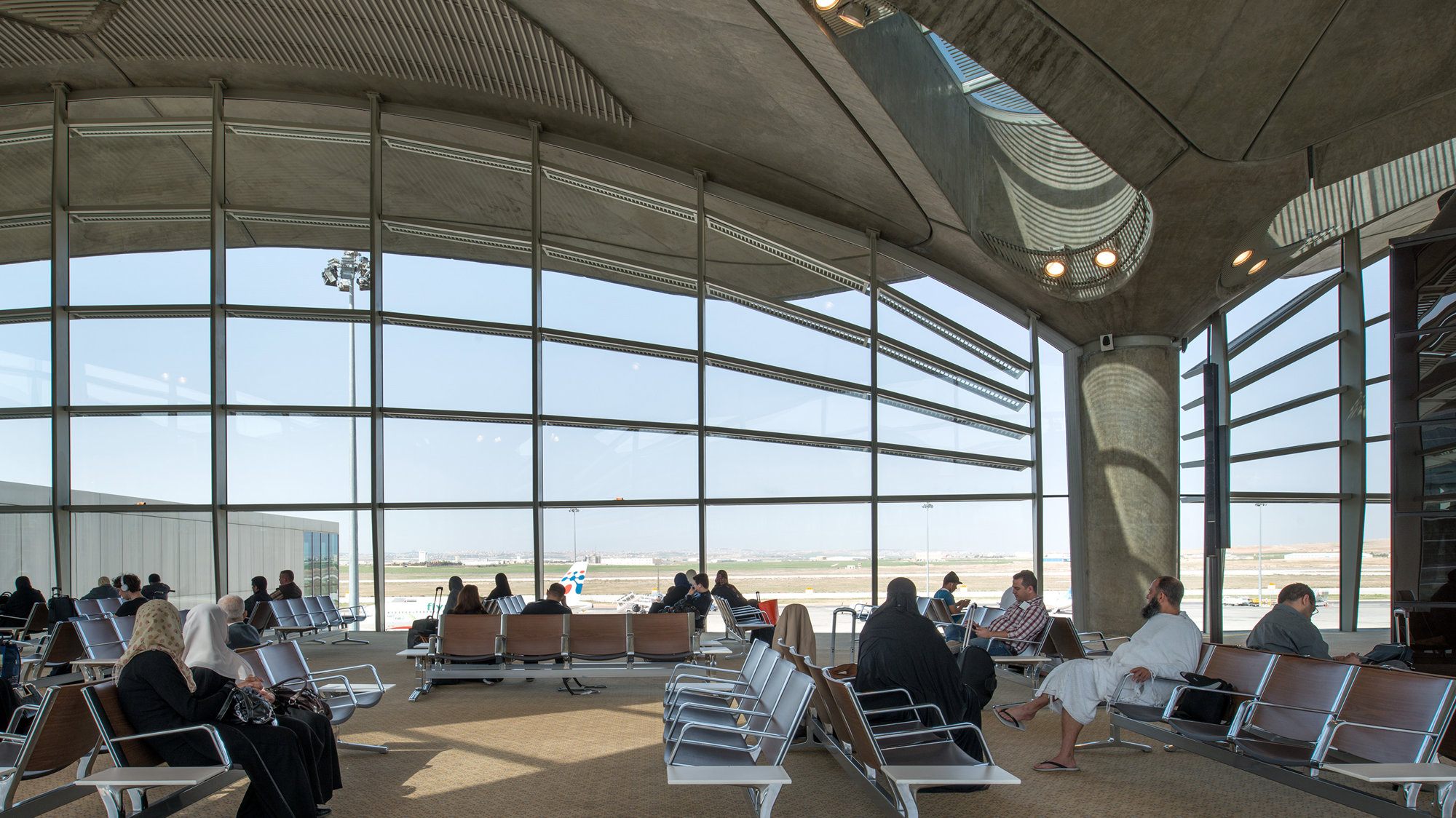

The terminal is glazed on all sides to open up long views to the aircraft on the apron and aid orientation. Two piers of departure gates run along either side of the central building, which contains the main processing areas and shops, lounges and restaurants.
Between these volumes, open-air courtyards draw on vernacular Arabic architecture and contribute to the terminal’s environmental strategy: the plants and trees help to filter pollution and pre-condition the air before it is drawn into the air handling system. In celebration of the tradition for family groups to congregate at the airport, the forecourt has been enlarged to create a landscaped plaza with seating, shaded by trees, where people can gather to bid farewell or welcome returning travellers.
Construction start: 2008
Area: 116 000 m²
Client: Airport International Group, The Hashemite Kingdom of Jordan Ministry of Trans, Joannou & Paraskevaides (Overseas) Ltd, J&P-AVAX S.A., Airport International Group P.S.C.
Design + Build Main Contractor: Joannou & Paraskevaides (Overseas) Ltd, J&P-AVAX S.A.
Collaborating Architect: Maisam - Dar Al-Omran JV
Structural Engineer: Buro Happold
Quantity Surveyor: David Langdon
M+E Engineer: Buro Happold
Landscape Architect: Dar Al-Handasah
Lighting Engineer: World of Lights
Additional Consultants: NACO, ADPi, Zuhair Fayez Partnership, Rahe Kraft
